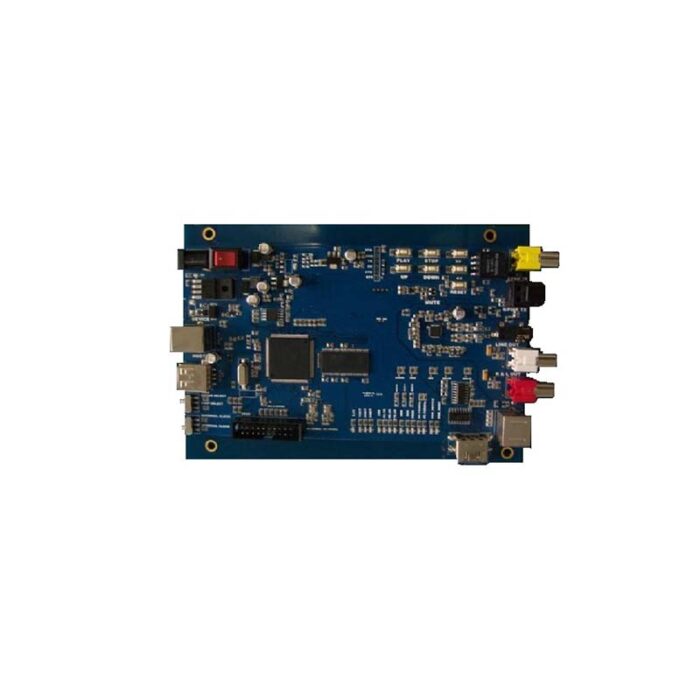

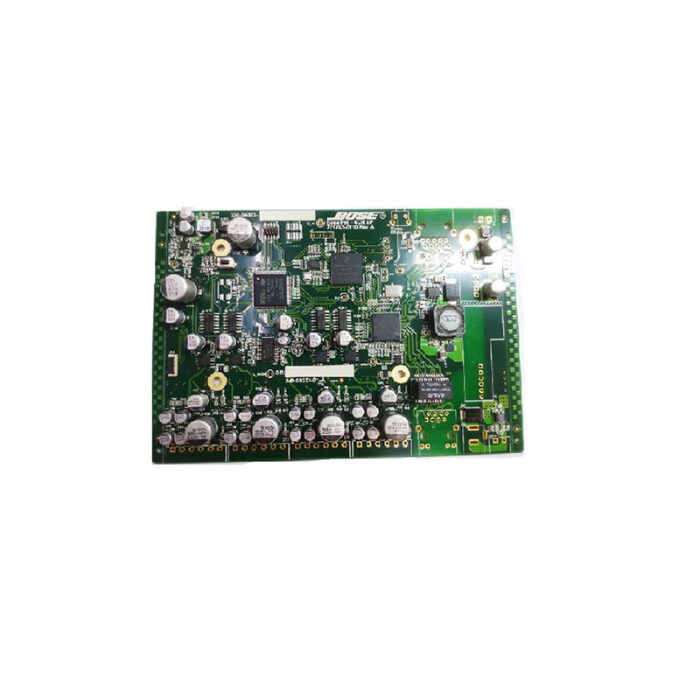

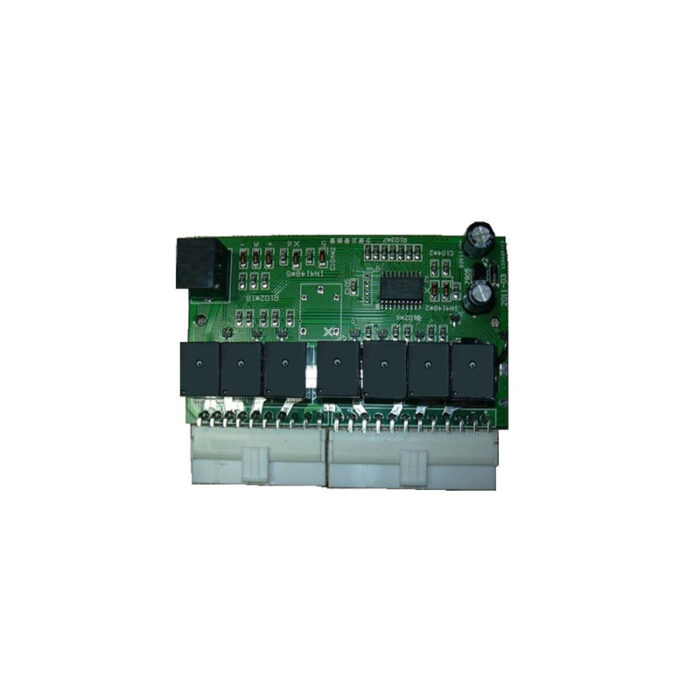

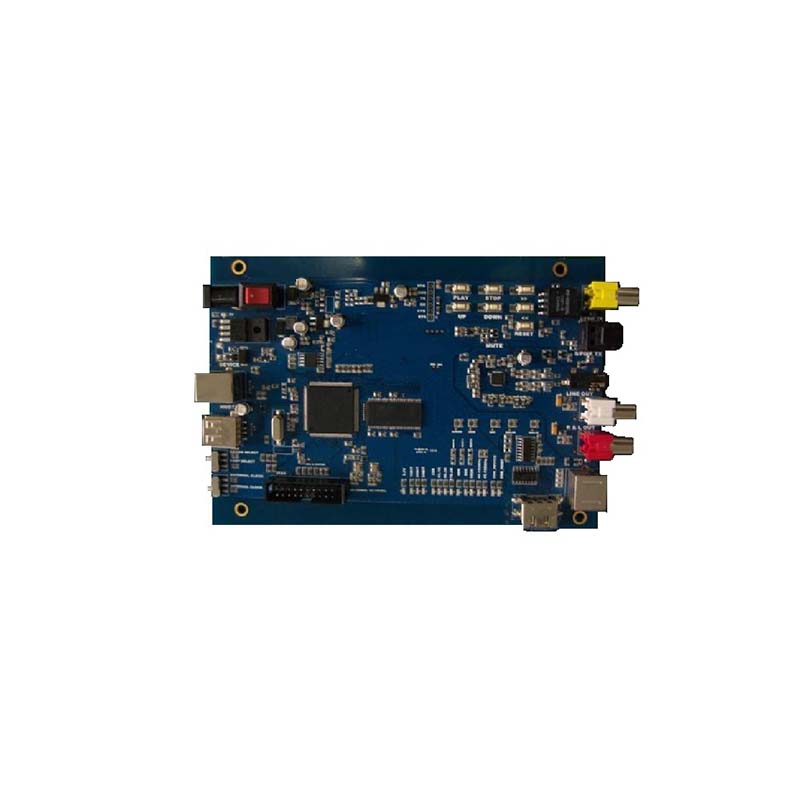

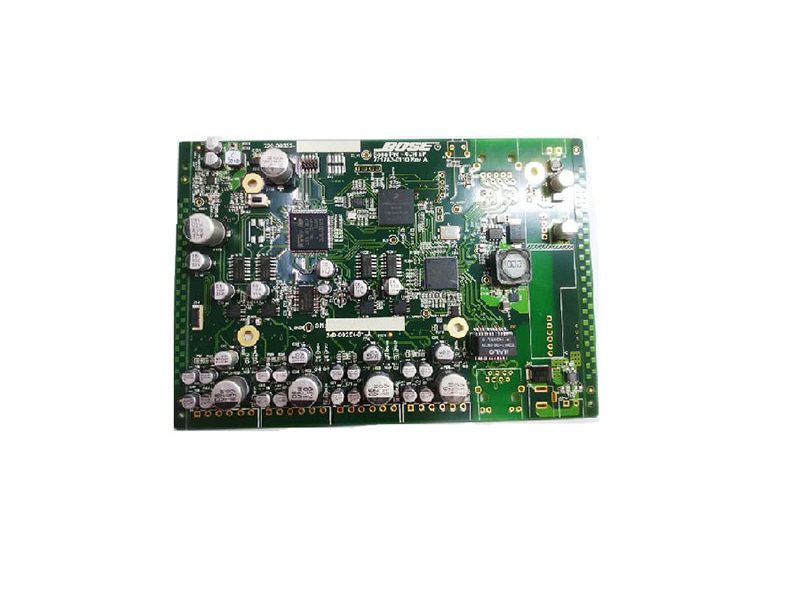

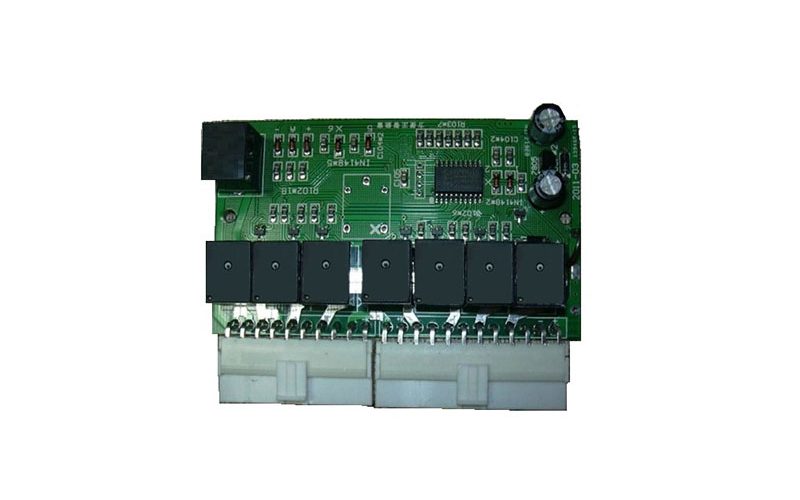

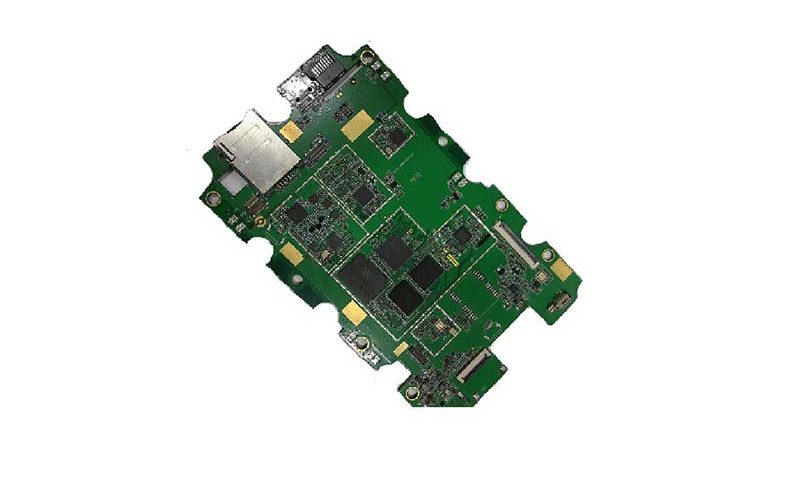

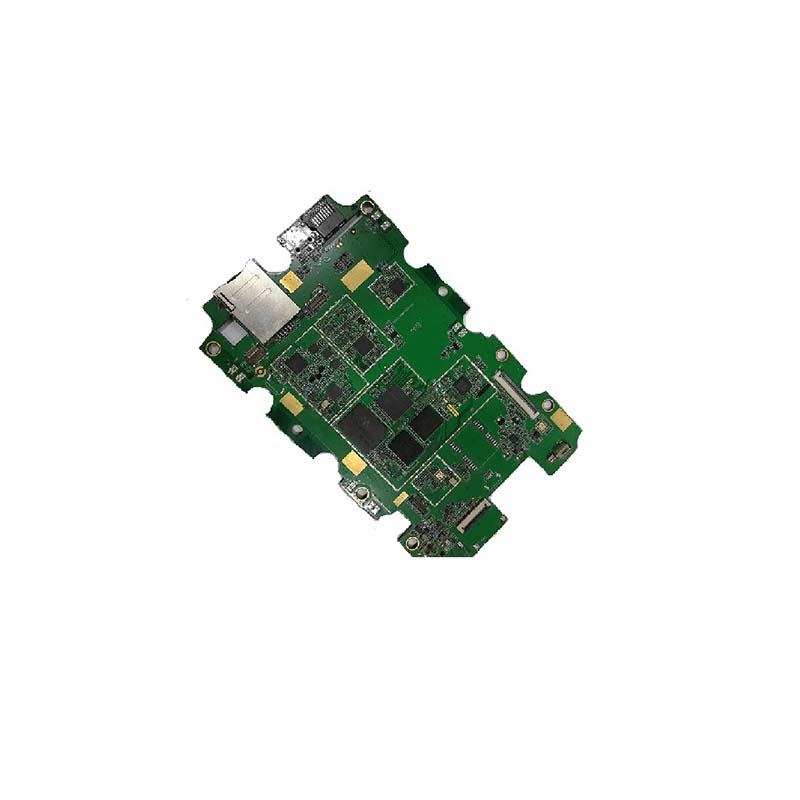

Automotive-Grade SMT Assembly for Navigation System PCBA

Precision Engineered for Road Reliability & Performance

As an IATF 16949-certified PCBA manufacturer, we deliver mission-critical SMT solutions for automotive navigation systems. Our advanced processes ensure zero-defect assemblies that withstand extreme vehicle environments while meeting stringent automotive functional safety and longevity requirements.

Automotive-Grade PCB Construction

Base Material: High-Tg FR-4 (Tg ≥ 170°C) or IS410 automotive-grade laminate
Layers: 6–12 layers (HDI/microvia capable)
Surface Finish: ENIG (Ni/Au) or Immersion Silver (for RF performance)
Operating Temp: -40°C to +105°C (component-specific derating applied)
Vibration Resistance: MIL-STD-202G, Method 214 validated
Protection: Conformal coating (IPC-CC-830B) or underfill for BGA reinforcement

Automotive Compliance & Reliability Standards

Quality Management: IATF 16949-certified process
Component Standards: AEC-Q100/Q101/Q200 qualified
PCB Standards: IPC-6012DA (Automotive Addendum)
ESD Control: ANSI/ESD S20.20 (Zone 4)
Environmental Compliance: RoHS 2/3, REACH, VOC control

Service Process & Flexible Support

Small Batch Production: MOQ 1 piece, 24-hour delivery. Free stencil + fast proofing.
High-Volume Capability: Fully automated lines, supports segmented mounting for ultra-long boards.
End-to-End Quality Control: In-line 3D SPI, AOI, X-ray + detailed inspection report upon shipment.
After-Sales Assurance: Complaint rate <50ppm; defective boards reworked at no cost.
