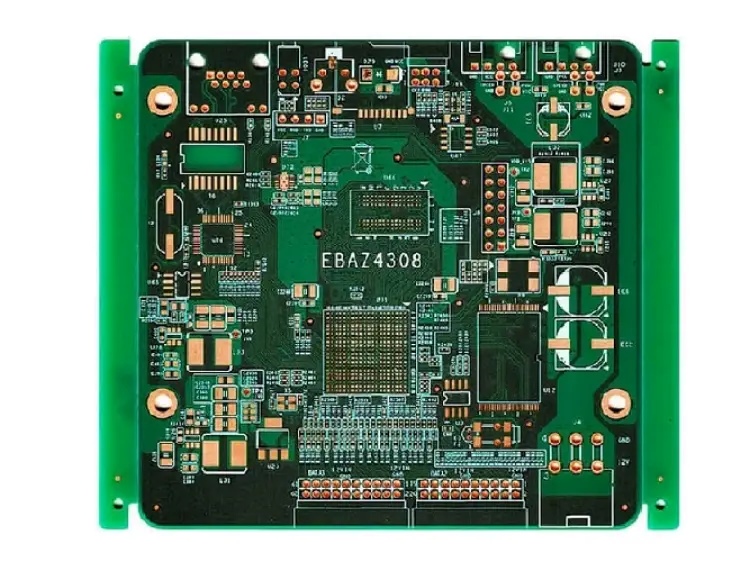

With the rapid development of modern electronics, high-speed data transmission has become a critical requirement across communication devices, industrial systems, and advanced electronic equipment. However, as signal speeds continue to increase, problems such as signal reflection, transmission loss, and electromagnetic interference can affect overall system performance. The controlled impedance FR4 PCB provides an effective solution by maintaining precise electrical characteristics throughout the circuit design. By controlling dielectric thickness, copper trace width, and material properties, this PCB technology helps ensure stable signal transmission and improved circuit reliability.
Baiyoudi focuses on providing advanced PCB manufacturing solutions that support demanding electronic applications. Through precise production processes and strict quality control, these FR4 PCB products help customers achieve better signal performance and long-term operational stability.
Precise Impedance Control Improves Signal Integrity
Signal integrity is one of the most important factors in high-speed PCB design. When impedance is inconsistent, signals may experience reflection, distortion, or unwanted noise, especially in complex multilayer circuits. The controlled impedance FR4 PCB is designed with accurate impedance management to maintain consistent signal transmission performance. With controlled dielectric thickness and optimized layer structures, the PCB can achieve impedance tolerance within ±10%, making it suitable for applications requiring high signal accuracy. Furthermore, precise impedance control helps reduce signal loss during transmission. Therefore, electronic systems can achieve improved communication efficiency, faster response times, and more reliable operation.
Key Performance Advantages
The performance of an FR4 PCB depends on multiple factors, including thermal stability, mechanical strength, and environmental resistance. These features allow the PCB to operate effectively in challenging conditions.
Main Advantages:
- Excellent Thermal Performance: High Tg materials with temperatures of 170-180°C maintain structural stability during lead-free reflow processes.
- Stable Signal Transmission: Controlled impedance design supports accurate high-speed signal routing with reduced interference.
- Strong Mechanical Reliability: Peel strength exceeding 1.0N/mm improves durability and connection stability.
- Enhanced Environmental Protection: UL94 V-0 flame rating and strong CAF resistance provide safer long-term performance.
These advantages make this PCB suitable for communication equipment, industrial electronics, embedded systems, and other signal-sensitive applications.
Advanced Manufacturing Technology Ensures Accuracy
In addition to material performance, manufacturing precision plays an important role in PCB reliability. Modern PCB production requires advanced equipment and strict process control to achieve consistent results. Baiyoudi utilizes advanced manufacturing technologies to ensure accurate circuit formation and reliable impedance performance.
Manufacturing Capabilities Include:
- Laser Direct Imaging: Achieves 25μm line and space resolution for precise circuit patterns.
- Plasma Desmear Technology: Improves hole wall preparation and enhances plating quality.
- Automated Optical Inspection: Detects defects with 10μm accuracy for better production consistency.
- TDR Impedance Testing: Verifies impedance performance and ensures electrical accuracy.
As a result, these advanced processes help manufacturers produce PCBs with stable electrical characteristics and reliable performance.
Quality Assurance For Reliable PCB Performance
Quality control is essential for electronic components that require consistent operation. Therefore, every PCB undergoes detailed inspection and testing before delivery.
The controlled impedance FR4 PCB is tested through multiple quality procedures to confirm electrical performance, structural reliability, and thermal durability.
| Testing Method | Purpose |
|---|---|
| 100% Electrical Testing | Checks circuit continuity and performs Hi-Pot verification |
| Microsection Analysis | Evaluates plating quality and internal structure |
| Thermal Stress Testing | Ensures durability according to IPC-TM-650 standards |
| TDR Testing | Confirms impedance accuracy and signal performance |
Through comprehensive testing, manufacturers can reduce potential failures and improve product reliability in real-world applications.
Supporting Complex Electronic Design Requirements
As electronic devices become smaller and more powerful, PCB designs require higher precision and better material performance. Traditional circuit boards may struggle with advanced signal requirements, while optimized FR4 solutions provide better control. Specialized FR4 formulations offer improved thermal performance, mechanical stability, and electrical consistency. Moreover, these materials support complex multilayer designs for applications that require accurate signal transmission. The controlled impedance FR4 PCB provides a strong foundation for modern electronic systems by combining advanced materials, precise manufacturing, and reliable testing methods.
Reliable PCB Technology For Future Electronics
High-speed electronics continue to create new challenges for PCB manufacturers and designers. Maintaining signal integrity is essential for improving device performance and ensuring stable operation. By integrating controlled impedance technology, advanced manufacturing processes, and strict quality assurance, Baiyoudi delivers FR4 PCB solutions that meet the requirements of modern electronic applications. Whether used in communication equipment, industrial systems, or high-performance digital devices, this PCB technology helps achieve accurate signal transmission and dependable performance. As electronic innovation continues, reliable impedance control will remain a key factor in developing efficient and durable circuit solutions.
